Fully Automatic Hollow Blocks Making Machine SLMW N008

Approx Price: 1850000

Fully Automatic Hollow
Blocks Making Machine

Steel Land Machinery works is an ISO 9001:2015 certified company,
"Steel Land Machinery works" is a reputed & reliable name in leading manufacturers & exporters of Fully Automatic Hollow Blocks Making Machine located in Morbi, Gujarat-India.

Technical Specification
MACHINE Body Heavy Duty 1 Piece : M.s Fabricated Stationary Chassis Of Angles, Channels And Sheet Fitted With Hydraulic Jacks For Compression Of 4000 PSI Hydraulically Operated Power Pack With10 Hp Ac Motor, Sweep, Oil Cooling System, And Plate Vibrating System With 2 Hp Vibrator
Power Pack High Pressure, Low Pressure Pump, Control Valve, Relieve Valve, Pcm, Pressure Gauge, Pipe Line, Oil Tank Capacity 400 Litter, Plc Etc.
CAPACITY Hollow Blocks - 2-3 Pcs. in One Operation.
Production : 3-4000 Pcs/8 Hrs
SIZE 12" x 8" x 6"
DESIGN Zic Zac, I-Shape, Hexagone, Etc.
TOTAL POWER Total Power Required : 28 HP
MAN POWER Total : 8 to 10 ( 1 person skilled )
FACILITY Facility Single Feeder Facilities For Production of Fly Ash Brick Superior Vibration in Brick Press, Colour Feeder for the Top Layer of Paver Block.
PAN MIXER Pan mixer 2 Pieces : of 1500 mm diameter fabricated with structural mild steel with replicable inner fitted with 15 HP, oil fitted reduction gear box feeding hopper with a capacity to mix 400 kg raw material.
CONVEYOR BELT Belt Conveyor 1 Piece: to shift mixed activated raw material from pan mixer to the feeder bin of the press. The 18 feet rubber conveyor belt is mounted structurally fitted with 2 HP motors.
PALLET TRUCK Pallet Truck 2 Piece: To Lift The Raw Material And Stocks To One Place To Another Place, This Is A Manually Operated On Structural Mild Steel Chassis With Tires.
NOTE With Toolbox Free

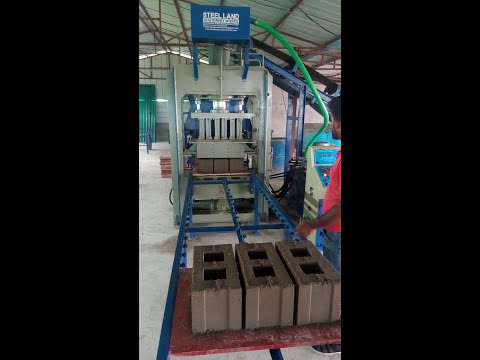

Hollow Block Making Machine

This automatic hollow block making machine is equipped with a 4000 PSI hydraulic jack and can manufacture 2/3 hollow blocks in one operation. It requires 28 horsepower. This hollow machine can produce a variety of sizes of hollow blocks, including 1 2 "x 8" x 6 ", and can make 3,000 to 4,000 blocks in approximately 8 hours. To carry raw materials and blocks from one site to another, two pallet trucks are required, each of which is manually operated on a structural mild steel chassis with tires.

These are Steel Land Machinery Works' main and standard machines. You will receive a free machine toolbox and machine installation services for all of the machines.

Construction activity is increasing day by day and the use of hollow blocks is becoming more common. Just as the demand for hollow blocks is increasing at twice the rate, so is the demand for hollow block making machines these days. This machine is vital for producing strong hollow blocks. The automatic hollow blocks machine has many molds in the shape of concrete blocks and produces a variety of hollow blocks. This fully automatic hollow block making machine includes two distinct systems: a plate vibrating system and an oil cooling system.

The block making machines are well worth the investment if you want to achieve the benefits of these durable blocks. A block making machine is a machine that uses pressure and vibration to manufacture hollow blocks and compresses concrete mortar into a mold to form concrete blocks.

We all know that manufacturing a hollow block requires a high-tech hollow block making machine. Let's see how the process of a hollow block making machine works.
